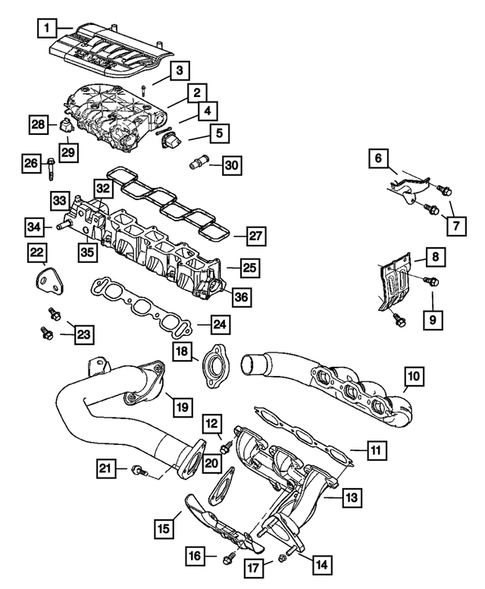

Manifolds for 2006 Chrysler Pacifica
No.
Part # / Description / Price
Price
N/A
3
Hex Head Patch Lock Bolt, Mounting
Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M6X1.00X140.00. Upper Intake Plenum To Lower Intake Manifold
5
Manifold Tuning Valve Actuator Package Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Consists of: Actuator, O-Ring and Seal
7
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: M5.74X1.81X21.50. Oil level Indicator Tube To Cylinder Block
MSRP $3.40
$2.36
MSRP $3.40
$2.36
9
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M10X1.50X25.00. Engine Mount to Bearing Block Bracket
MSRP $5.40
$3.81
MSRP $5.40
$3.81
12
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: M8x1.25x30. Power Take Off Unit To Transmission Differential
MSRP $5.70
$4.05
MSRP $5.70
$4.05
14
Double Ended Stud Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Cat. Converter to Particulate Filter Attachment. M8x1.25x45.0
MSRP $6.00
$4.24
MSRP $6.00
$4.24
15
Exhaust Manifold Shield Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Used After 7-26-2004.
17
Nut, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M8x1.25. Turbocharger And Heat Shield To Cylinder Head
MSRP $4.20
$3.03
MSRP $4.20
$3.03
18
Exhaust Manifold Crossover Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Includes Gasket, Flange and Screws
19
MSRP $13.65
$9.86
20
Exhaust Manifold Gasket Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Crossover to Rear Exhaust Manifold
22
Intake Manifold Bracket Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Crossover Pipe to Lower Intake Manifold
23
Screw And Washer Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M8x1.25x25. P/S Strut to Pump
24
Intake Manifold Gasket Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Lower Intake Manifold To Cylinder Head.
26
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M8X1.25X55.00. Oil Pump Body To Cylinder Block
27
MSRP $30.80
$22.14
30
Nipple Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: .375-18X2.00. Also Serviced With Cover
MSRP $15.85
$11.50
MSRP $15.85
$11.50
33
Nipple Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Coolant Recovery. Coolant Return.
35
Coolant Temperature Sensor Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Engine coolant temperature
36
Core Plug, Left, Cylinder Head Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: 1.25 Diameter. [1 1/4] With Zinc Plate. Water Jacket Core
MSRP $7.05
$4.96
MSRP $7.05
$4.96
